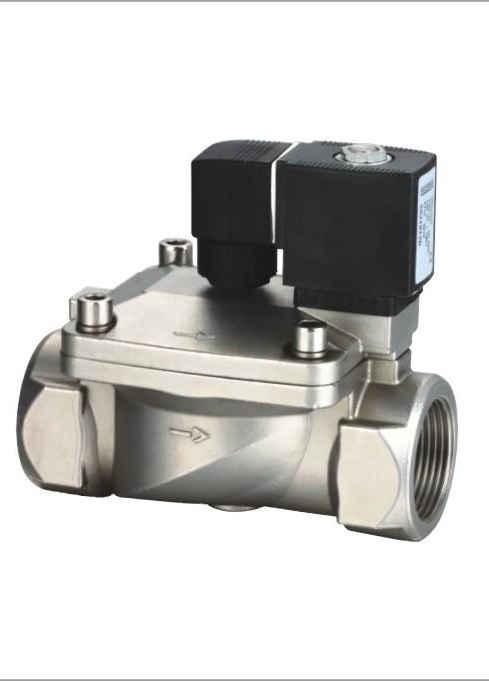

   Solenoid Valve      998345016
Price :
Type : SPU 40/DC24V
Function : open/close control
Packaging Size : 143*96*173(cm)
Delivery Period : 1 day
Availability : total 50 items, Sold pieces 0 items, Pieces Left 0 items
This product has been viewed 113 times

Detailed Information

Ambient Temp:-40oC-70oC

Working pressure is 1/3-3/4 max. static pressure 1/3-2/3 max.Dymamls liquid pressure;

Relative Humidity:<80%

Working Vibration Frequency:<25Hz;media ampltude<1mm

It is required to mount the device vertically. It is forbidden to turn the device casing with hands during mounting or demounting opration.

Diameter

50

Working Pressure

Water  Gas:0-1.0MPa Oil:0-0.5MPa

Medium Temperature

-5-80oC

Rating Voltage

AC:220

power

<15W

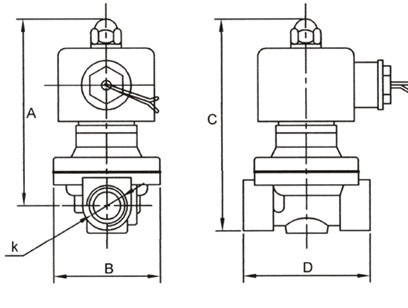

Model

A

B

C

D

K

VOLTS

SPU-40

142

95

172

123

PT11/2"



DC24
