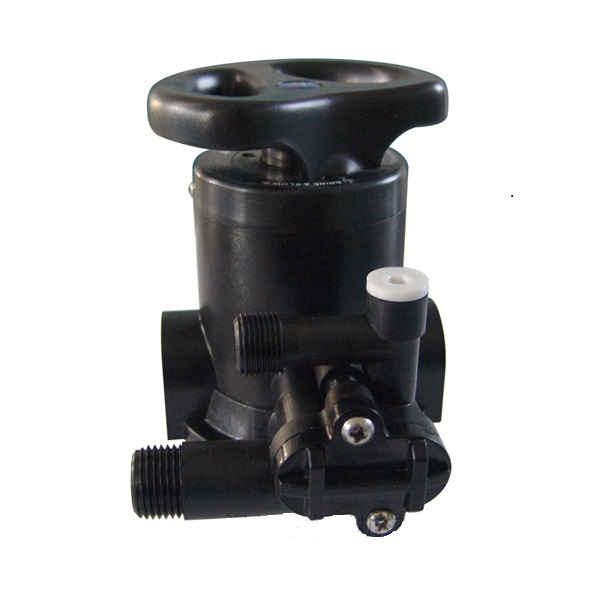

   Manual multi-port Valve      9714525716
Price :
Type : F64B-1"
Function : manual valve
Packaging Size : 94*130.8*205(mm)
Delivery Period : 1 day
Availability : total 20 items, Sold pieces 0 items, Pieces Left 0 items
This product has been viewed 159 times

Detailed Information

Product Feature:

Adopt the high degree pottery, seal slice with scuff resistance, corrosion proof, perfect sealing, and long time for using.

No water flows out in the drain line when in washing position with signal tank valve

Can be side controlled

Working conditions

Water pressure

0.15Mpa-0.6Mpa

0.2Mpa-0.6Mpa

Water temperature

5-50oC

Environment temperature

5-50oC

Relative temperature

<95%(25oC)

Turbidity

Dowmflow<5FTU,upflow<2FTU

Model:                                  F64B

Inlet/outlet:                         1"

Drain:                                    1/2"M

Brine line connector:           3/8"

Base:                                       2.5"-8NPSM

Riser pipe:                              1.05D-GB

Water capacity(m3/h):         4

Tank size(inch)                       6"-18"

Regeneration mode:              Downflow
