Product Feature:

Adopt the high degree pottery, seal slice with scuff resistance, corrosion proof, perfect sealing, and long time for using.

Reasonable fluid design: service, Backwash, Fast Rinse, Service.

Small rotation angle for closing and opening, It feels well for operation.

It could operate with pressure, no leakage.

Working principle and range of application

According to the principle of hermetic head faces, it concentrates the multi-valves into one valve body, which are located on a flat circle.

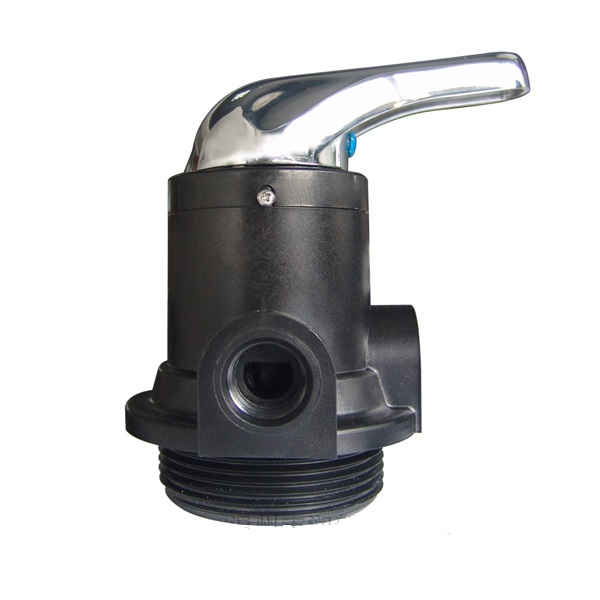

When rotate moving disk, it could realize the function of several valve closed or opened at the same time. Manual filter valve 51 series use handle to manually control valve core, to realize the functions like service, backwash and fast rinse.

It is mainly used in specialty water treatment system like household purifier, filter device of RO Pre-treatment, swimming pool filter equipment and iron and manganese removal.

Model:                          F56E

Inlet/outlet:                 3/4"

Base:                              2.5"-8NPSM

Riser pipe:                     1.05"D-GB

Water capacity(m3/h): 2

Tank size(inch):              6"-10"
