   FRP Tank      949314516
Price :
Type : 6094(inch),6T6B
Function : pressure vessel
Packaging Size : wooden pallets:147*147*12(cm)
Delivery Period : 1 day
Availability : total 20 items, Sold pieces 0 items, Pieces Left 0 items
This product has been viewed 146 times

Detailed Information

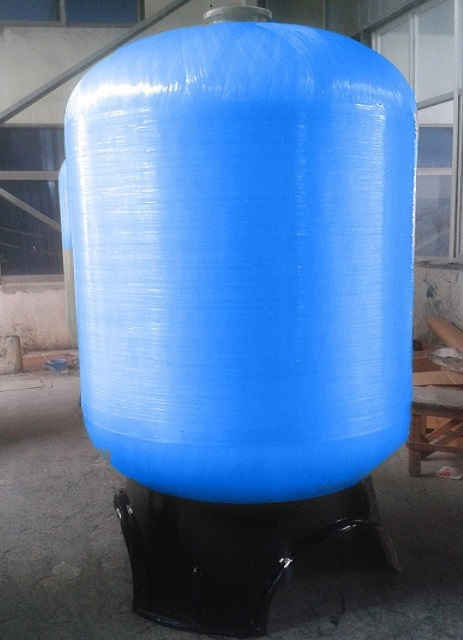

FRP tank: 6094inch

Size:1500*2400mm

Capacity:1046L

Opening:6"-6" flg

In/out pipe: 3"

Matching valve: JMA501, DN80*3&DN100*2

Filter average flow: 155GPM; Softener average flow: 229GPM

Media weight: 3050Kg(sand)/1175Kg(carbon)/1800L (resin)

Matching brine tank: 2000L*2





Structure & Materials

Liner Material: PE(polyethylene), rotation molding, seamless without leakage

Outer Winding: High performance Fiber Glass and Epoxy Resin;

Opening: 4"reinforced plastic thread, 6"alloy flange

Bass Materials: FRP



Application conditions

Working pressure: <150psi/10.5bar

Working temperature: 1-4o

Max. Vacuum: 127mm Hg

Lowest environment temperature: -27oC
