FRP Tank 948535916

Price :

Type : 4072(inch),4T4B

Function : pressure vessel

Packaging Size : wooden pallets:117*117*12(cm)

Delivery Period : 1 day

Availability : total 20 items, Sold pieces 0 items, Pieces Left 0 items
This product has been viewed 127 times

Detailed Information

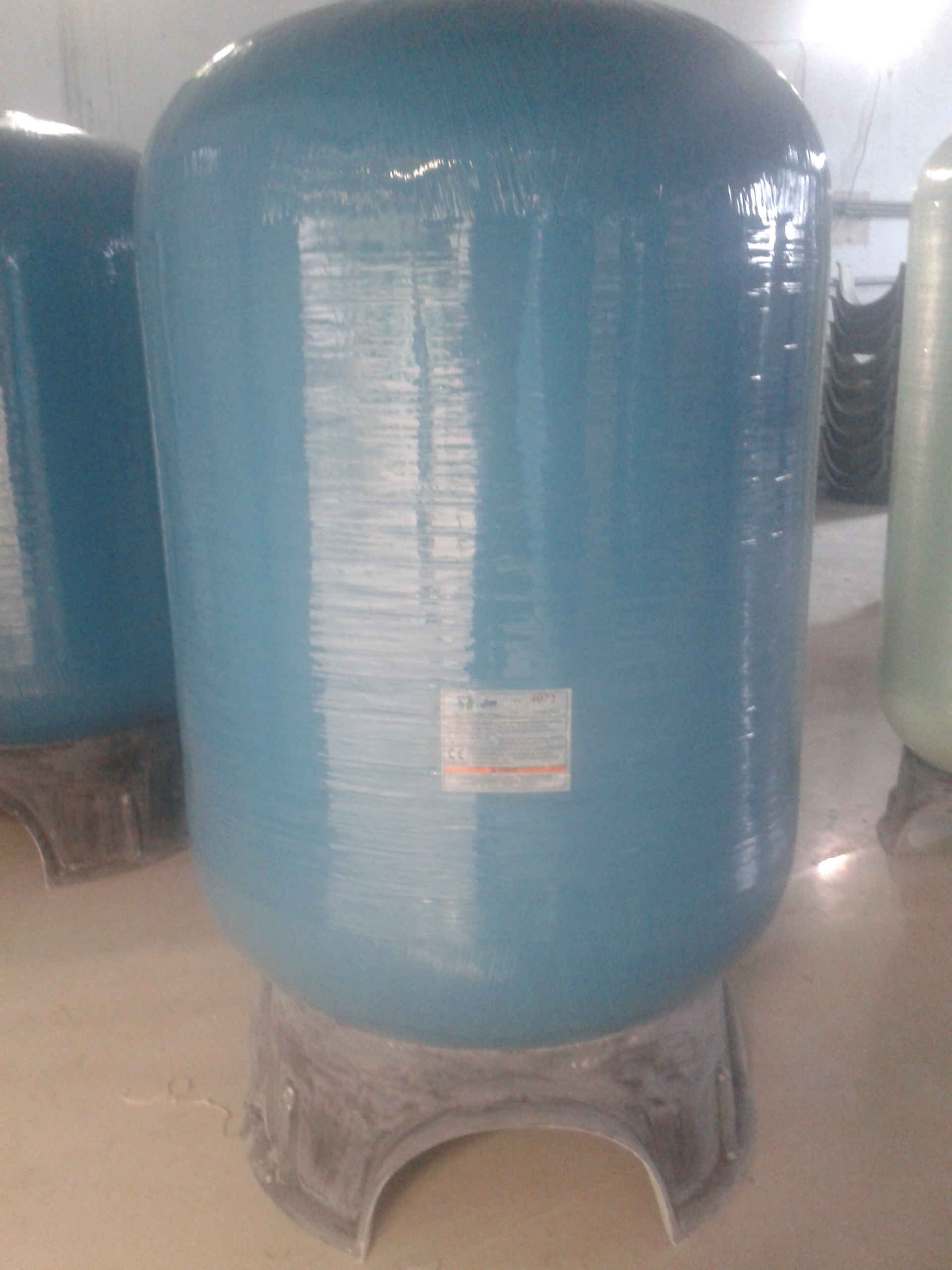

FRP tank: 4072inch

Size:1000*1850mm

Capacity:1046L

Opening:4"-4" I

n/out pipe: 2"

Matching valve: JMA501, DN50*3&DN65*2

Filter average flow: 71GPM;

Softener average flow: 105GPM

Media weight: 1200Kg(sand)/450Kg(carbon)/700L (resin)

Matching brine tank: 1500L

Feature:

Material of construction FRP inner liner

Continuous Fiberglass with high performance resin roving on the outer of the liner

Max.working pressure:1.0Mpa/150psi/10bar

Working temperature:1-49^oC

Max. Vacuum:127mmHg(5"mmHg)
