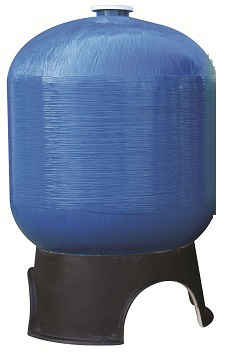

FRP Tank 947592616

Price :

Type : 7294(inch),6T6B

Function : pressure vessel

Packaging Size : wooden pallets:174*174*12(cm)

Delivery Period : 1 day

Availability : total 20 items, Sold pieces 0 items, Pieces Left 0 items
This product has been viewed 155 times

Detailed Information

FRP tank: 7294(inch)

Size:1800*2400(mm)

Capacity:3561L

Opening:6"flg-6"flg

In/Out pipe: 4"

Matching valve:JMA501, DN100*5

Filter average flow:3.1GPM; Softener average flow:4.4GPM

Media weight: 4050Kg(sand)/1550Kg(carbon)/2370L(resin)

Matching brine tank :Concret tank

Feature:

Material of construction FRP inner liner

Continuous Fiberglass with high performance resin roving on the outer of the liner

Max.working pressure:1.0Mpa/150psi/10bar

Working temperature:1-49^oC

Max. Vacuum:127mmHg(5"mmHg)
