   FRP Tank      941355016
Price :
Type : 1665(inch),4T
Function : pressure vessel
Packaging Size : 40.2*40.2*1651
Delivery Period : 1 day
Availability : total 50 items, Sold pieces 0 items, Pieces Left 0 items
This product has been viewed 137 times

Detailed Information

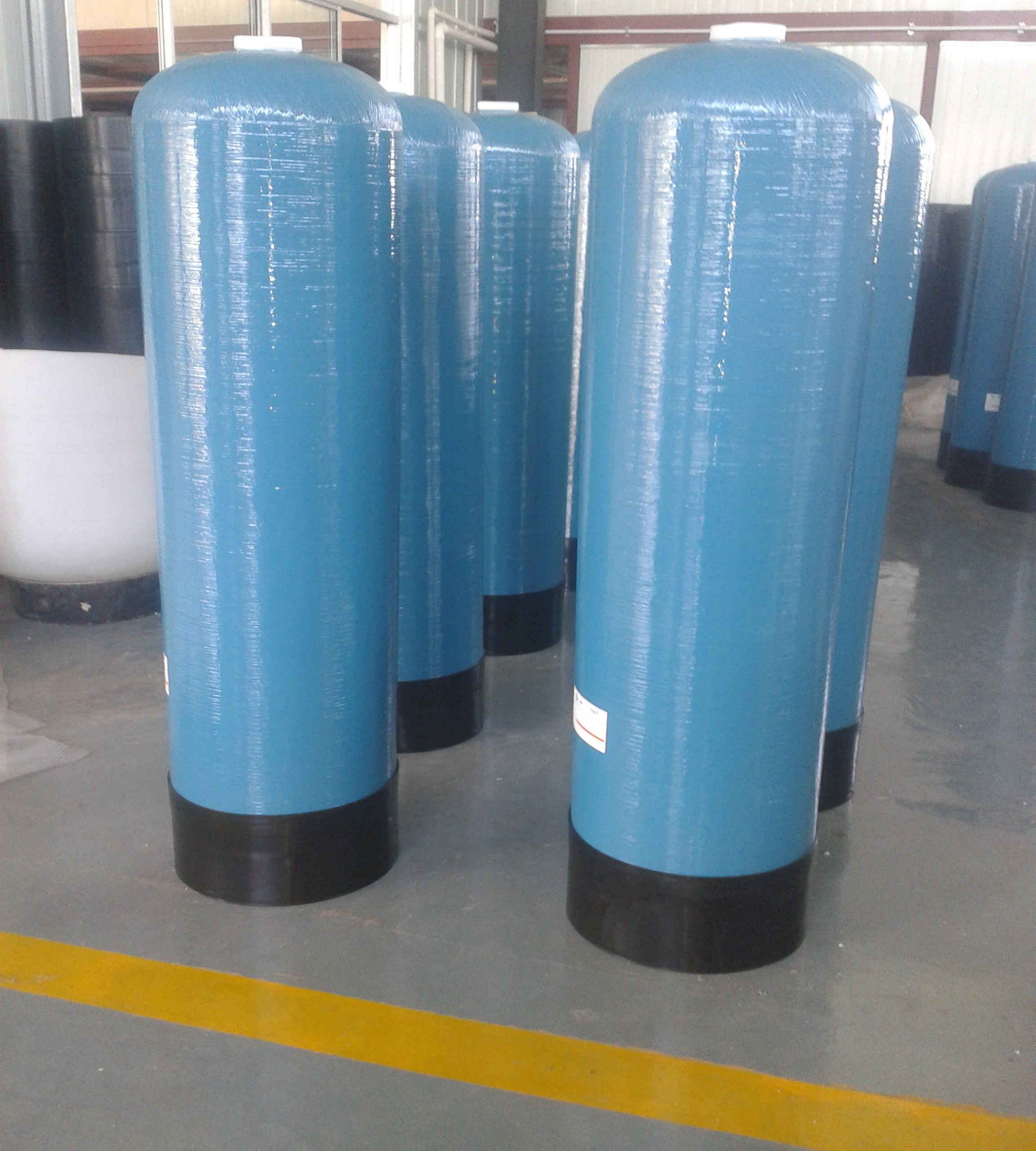

FRP tank: 1665inch

Size:400*1650mm

Capacity:194L

Opening:4"

In/out pipe: 1"

Matching valve: F15/D/2750

Filter average flow: 11GPM;

Softener average flow: 17GPM

Media weight: 225Kg(sand)/67Kg(carbon)/125L (resin)

Matching brine tank: 200L

Structure & Materials

Liner Material: PE(polyethylene), blow molding, seamless without leakage

Outer Winding: High performance Fiber Glass and Epoxy Resin;

Bass Materials: PP



Application conditions

Working pressure: ,锟斤拷?/span>150psi/10.5bar

Working temperature: 1-49oC

Max. vacuum: 127mm Hg

Lowest environment temperature: -2oC

Design parameter

Burst pressure: 600psi/42bar;

Fatigue cycle: 100,000
