   FRP Tank      9410514116
Price :
Type : 3672H(inch),4T4B
Function : pressure vessel
Packaging Size : wooden pallets:87*87*12(cm)
Delivery Period : 1 day
Availability : total 50 items, Sold pieces 0 items, Pieces Left 0 items
This product has been viewed 128 times

Detailed Information

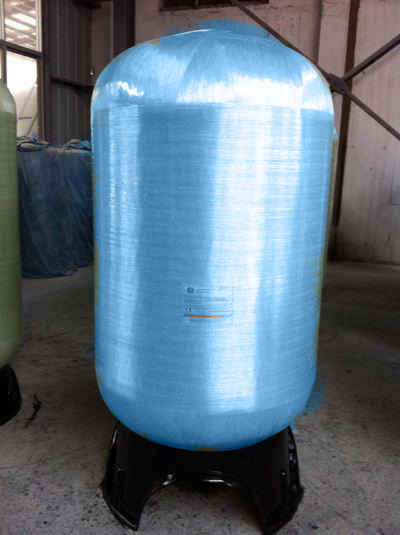

FRP tank: 3672Hinch

Size:1000*1850mm

Capacity:1023L

Opening:4"-4"

In/out pipe: 2"

Matching valve: F41/F31/3150

Filter average flow: 56GPM;

Softener average flow: 84GPM

Media weight: 1200Kg(sand)/450Kg(carbon)/675L (resin)

Matching brine tank: 500L



Structure & Materials

Liner Material: PE(polyethylene), rotation molding, seamless without leakage

Outer Winding: High performance Fiber Glass and Epoxy Resin;

Opening: 4"reinforced plastic thread

Bass Materials: FRP



Application conditions

Working pressure: <150psi/10.5bar

Working temperature: 1-4oC

Max. vacuum: 127mm Hg

Lowest environment temperature: -27oC





Design parameter

Safety ratio: 4:1

Burst pressure:600psi/42bar

Fatigue cycle: 100,000
