   FRP Tank      9410463716
Price :
Type : 3694(inch),6T6B
Function : pressure vessel
Packaging Size : wooden pallets:87*87*12(cm)
Delivery Period : 1 day
Availability : total 50 items, Sold pieces 0 items, Pieces Left 0 items
This product has been viewed 123 times

Detailed Information

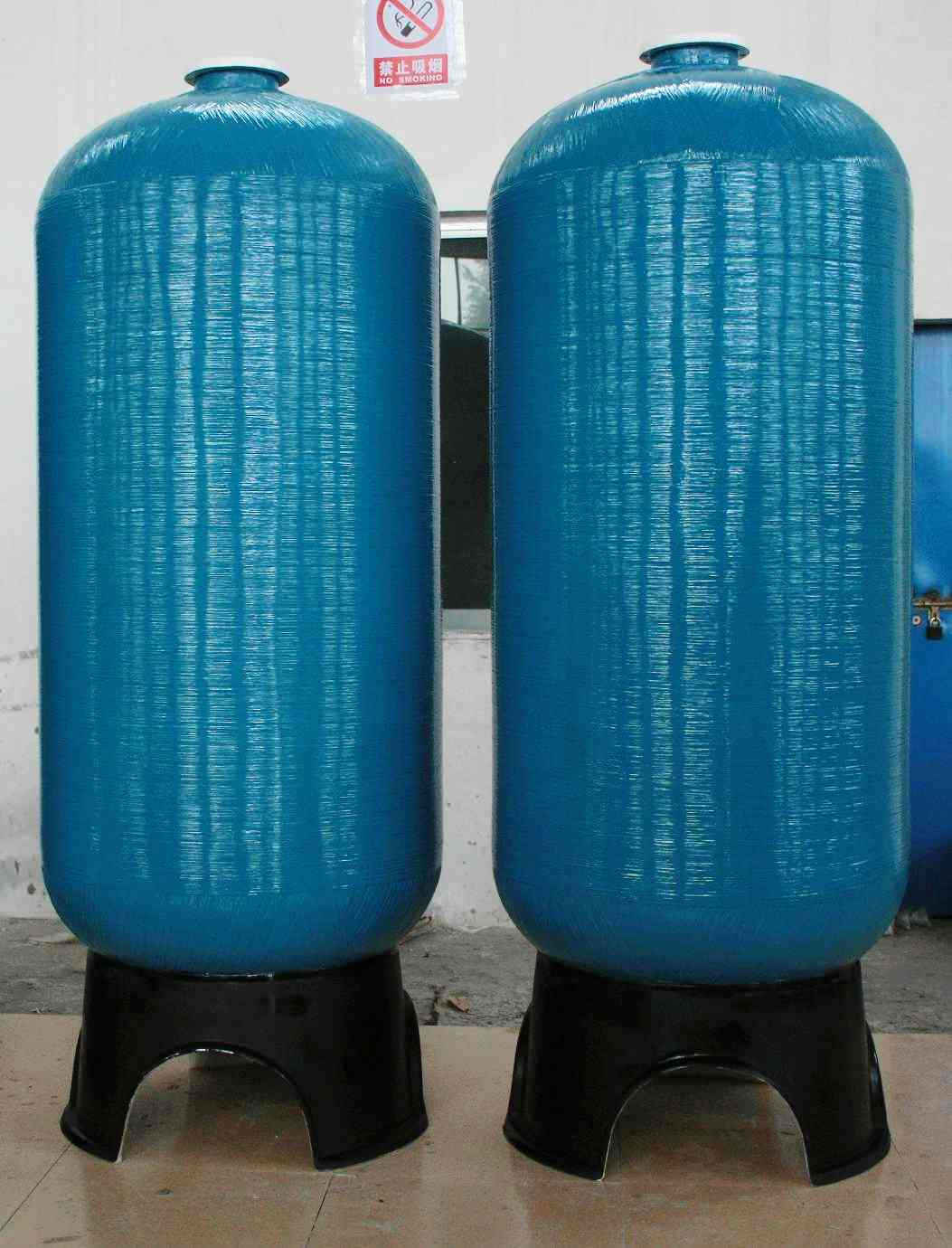

FRP tank: 3694inch

Size:900*2400mm

Capacity:1205L

Opening:6"-6"flg

In/out pipe: 2"

Matching valve: F41/F31/3150

Filter average flow: 56GPM;

Softener average flow: 84GPM

Media weight: 1400Kg(sand)/525Kg(carbon)/800L (resin)

Matching brine tank: 1000L



Structure & Materials

Liner Material: PE(polyethylene), rotation molding, seamless without leakage

Outer Winding: High performance Fiber Glass and Epoxy Resin;

Opening: 6"alloy flange

Bass Materials: FRP



Application conditions

Working pressure: <150psi/10.5bar

Working temperature: 1-4oC

Max. vacuum: 127mm Hg

Lowest environment temperature: -27oC





Design parameter

Safety ratio: 4:1

Burst pressure:600psi/42bar

Fatigue cycle: 100,000
