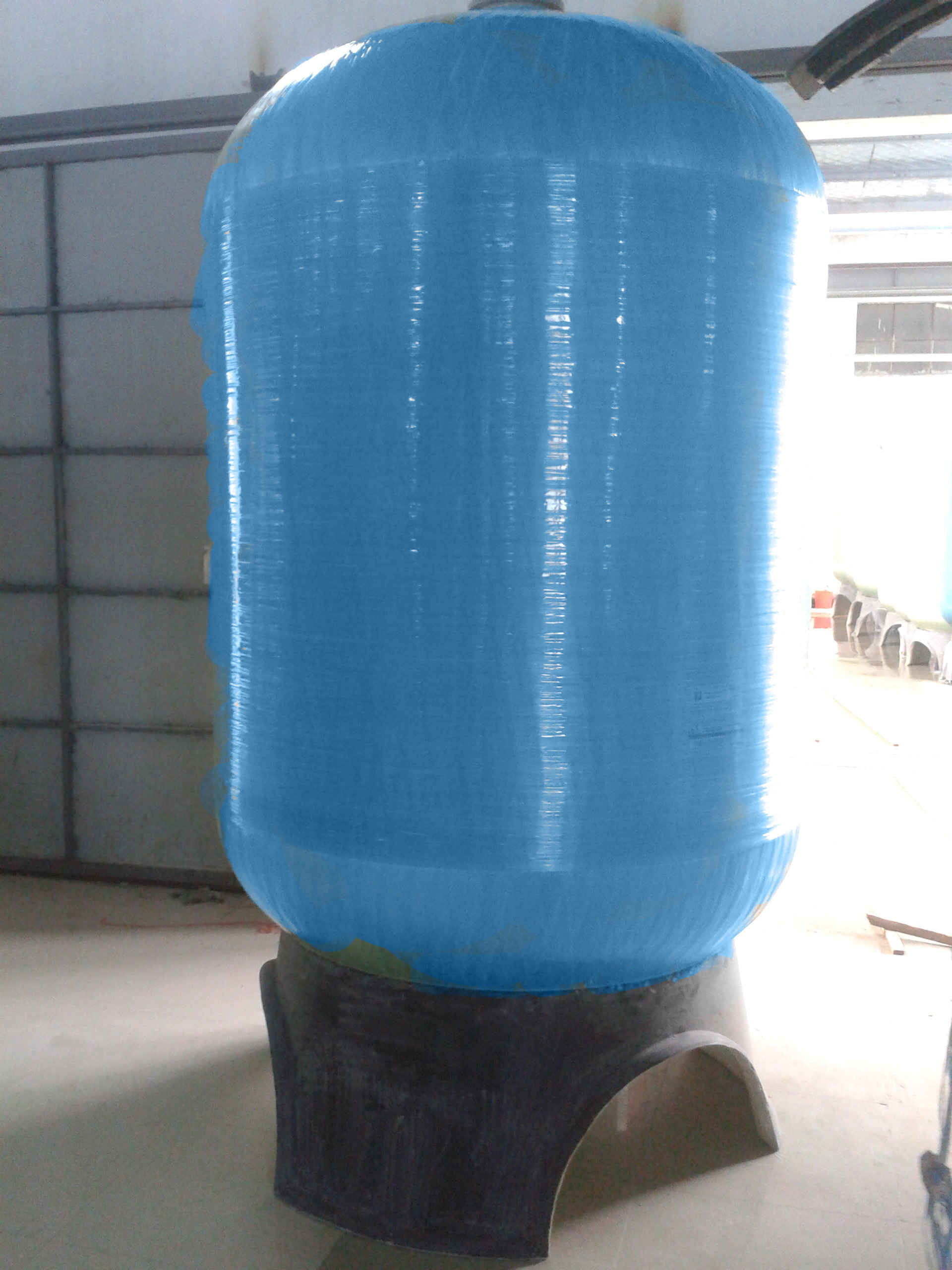

FRP tank: 4294inch

Size:1000*2400mm

Capacity:1500L

Opening:6"-6"flg

In/out pipe: 2"

Matching valve: JMA501, DN50*3&DN65*2

Filter average flow: 71GPM;

Softener average flow: 105GPM

Media weight: 1250Kg(sand)/475Kg(carbon)/750L (resin)

Matching brine tank: 1500L

Structure & Materials

Liner Material: PE(polyethylene), rotation molding, seamless without leakage

Outer Winding: High performance Fiber Glass and Epoxy Resin;

Opening:6"alloy flange

Bass Materials: FRP

Application conditions

Working pressure: <150psi/10.5bar

Working temperature: 1-4^oC

Max. vacuum: 127mm Hg

Lowest environment temperature: -27^oC

Design parameter

Safety ratio: 4:1

Burst pressure:600psi/42bar

Fatigue cycle: 100,000
