   Membrane      1919463916
Price :
Type : Qfx SW 400 IR
Function : RO System
Packaging Size :
Delivery Period :
Availability : total 1000 items, Sold pieces 0 items, Pieces Left 0 items
This product has been viewed 147 times

Detailed Information

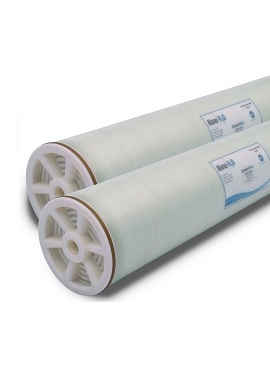

Qfx SW 400 IR

Seawater Reverse Osmosis (RO) Elemen

NanoH2O’s thin-film nanocomposite (TFN) Quantum Flux membranes lower the cost of desalination  by improving energy efficiency and productivity.  Qfx membranes feature benign nanomaterials incorporated into the thin-film polyamide layer of a composite membrane. This innovative patent-pending technology significantly increases membrane permeability and improves salt rejection.

      Industry-standard flux and salt rejection

      Standard 8-inch spiral wound element design

      Easy to retrofit existing RO plants

      NSF Standard 61 Certification



Product Number

Permeate flow rate m3/d (gpd)

Minimum NaCl Rejection %

Stabilized NaCl Rejection %

Active Membrane Area m2 (ft2)

Feed Spacer mil

Stabilized Boron Rejection %

Qfx SW 400 IR

34(9000)

99.6

99.7

37(400)

28

92



Operating Specifications



Max. Applied Pressure

8.27 MPa (1,200 psig)

Max. Chlorine Concentration

< 0.1 ppm

Max. Operating Temperature

45°C (113°F)

pH Range, Continuous (Cleaning)

2-11 (2-13)

Max. Feedwater Turbidity

1.0 NTU

Max. Feedwater SDI (15 minutes)

5.0

Max. Feed Flow

17.0 m³/h (75 GPM)

Min. Ratio of Concentrate to Permeate Flow for any Element

5:1

Max. Pressure Drop for Each Element

0.7 bar (10 psi)



Product Dimensions:



Length

101.6 cm (40 in.)

Element Outside Diameter (O.D.)

200 mm (7.9 in.)

Permeate Tube Inside Diameter (I.D.)

28.6 mm (1.125 in.)

Weight

16.4 kg (36 lbs.)
