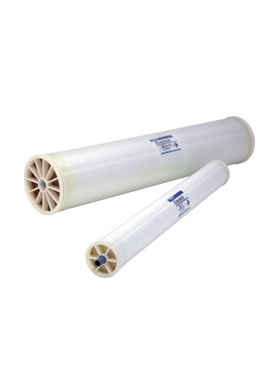

   Membrane      11119165716
Price :
Type : TM720-400
Function : RO System
Packaging Size :
Delivery Period :
Availability : total 1000 items, Sold pieces 0 items, Pieces Left 0 items
This product has been viewed 150 times

Detailed Information

Type

Diameter Inch

Membrane Area ft2(m2)

Salt Rejection %

Product Flow Rate gpd(m3 / d)

Feed Spacer Thickness mil

TM710

4”

87(8)

99.7

2,400(9.1)

31

TM720-370

8”

370(34)

99.7

9,500(36.0)

31

TM720-400

8”

400(37)

99.7

10,200(38.6)

31

TM720-440

8”

440(41)

99.7

11,300(42.6)

28

1. Membrane Type



Cross Linked Fully Aromatic Polyamide Composite

2. Test Conditions

Feed Water Pressure

225 psi(1.55MPa)

Feed Water Temperature

77°F(25)

Feed Water Concentration

2,000 mg/l Nacl

Recovery Rate

15%

Feed Water pH

7

3. Minimum Salt Rejection



99.00%

4. Minimum Product Flow Rate



2,000gpd(7.6m3/d)(TM710)

7,500gpd(28.4m3/d)(TM720-370)

8,200gpd(31.0m3/d)(TM720-400)

9,000gpd(34.1m3/d)(TM720-440)



Dimensions





Operating Limits



Maximum Operating Pressure

600psi (4.1 MPa)

Maximum Feed Water Temperature

113°F (45)

Maximum Feed Water SDI15

5

Feed Water Chlorine Concentration

Not Detectable

Feed Water pH Range, Continuous Operation

2-11

Feed Water pH Range, Chemical Cleaning

1-12

Maximum Pressure Drop per Element

20psi (0.14 MPa)

Maximum Pressure Drop per Vessel

60psi (0.4 MPa)



Operating Information





1. For the recommended design range, please consult the latest Toray technical bulletin, design guide lines, computer design program, and/ or call an application specialist. If the operating limits given in this Product Information Bulletin are not strictly followed, the Limited Warranty will be null and void.



2. All elements are wet tested, treated with a 1% by weight percent sodium bisulfite storage solution, and then vacuum packed in oxygen barrier bags, or treated with tested feed water solution, and then vacuum packed in oxygen barrier bags with deoxidant inside. To prevent biological growth during short term storage, shipment, or system shutdown, it is recommended that Toray elements be immersed in a protective solution containing 500 - 1,000 ppm of sodium bisulfite (food grade) dissolved in permeate.



3. The presence of free chlorine and other oxidizing agents under certain conditions, such as heavy metals which acts as oxidation catalyst in the feed water will cause unexpected oxidation of the membrane. It is strongly recommended to remove these oxidizing agents contained in feed water before operating RO system.



4. Permeate from the first hour of operation shall be discarded.



5. The customer is fully responsible for the effects of chemicals that are incompatible with the elements.Their use will void the element Limited Warranty.
